Reference project WT290(c)

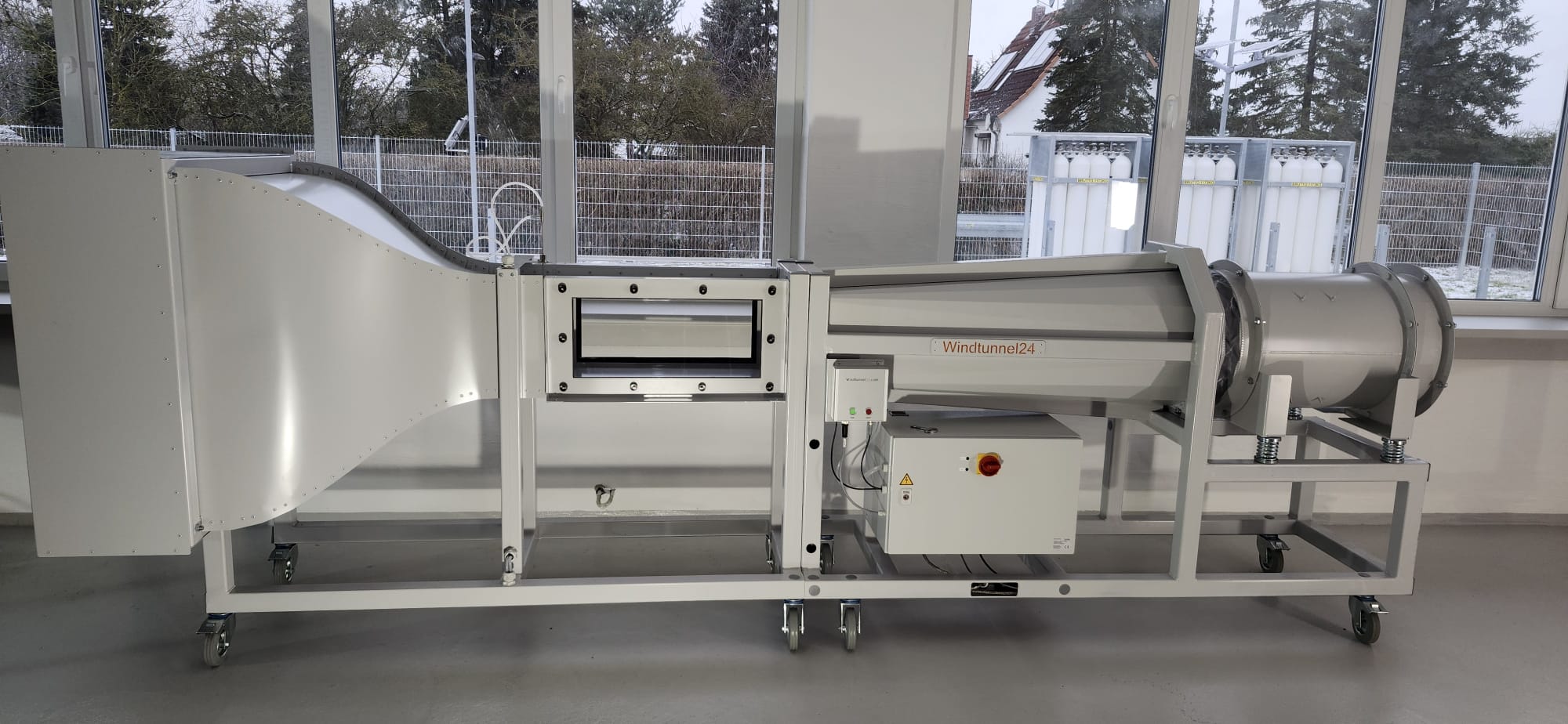

WT290 – Tevel

Versatile Eiffel Wind Tunnel by Baltic Windtunnel – segmented design for easy shipping – with a large, easily accessible test section

​

  • Measurements at speeds of up to 30 m/s
  • High contraction ratio of 9
  • well-visible test section
  • Movable design

The WT290(c) offers a cost-effective option for installing a wind tunnel with a spacious test section in a laboratory environment. It is delivered in individual segments (on rollers and including an assembly plan), eliminating the need for on-site assembly by our engineers.

To suppress turbulence, the wind tunnel features a honeycomb straightener within a honeycomb cassette, followed by three screens. These are accessible through inspection hatches for cleaning.
The nozzle, with a contraction ratio of 9, accelerates the flow in the 300 x 300 x 800 mm test section to speeds of up to 30 m/s (110 km/h).

The sophisticated design of the diffuser ensures separation-free guidance of the flow to the vibration-isolated axial fan in the shortest possible installation space.

The system is controlled using a potentiometer or, for an additional charge, centrally using the proven wind tunnel control BWT-Control, conveniently via touch panel. A wind tunnel scale is also available as an option.

Characteristics

Type Open Loop
Measuring cross section 300 x 300 mm
Measuring length 800 mm
Max. windspeed 30 m/s
Turbulence level 0,3% @ 20 m/s
Datasheet WT342(d)
