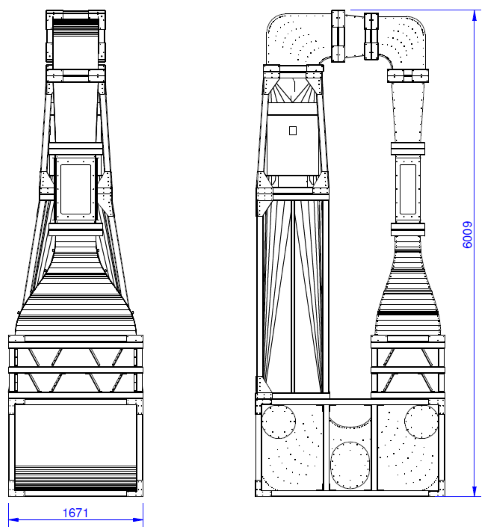

Dimensions

Datasheet WT241

Technical Data

Design type		Closed loop
Measuring cross section	mm	250 x 500
Max. wind speed	m/s	bis 70
Turbulence level	%	1
Contraction		9

General Specification

• design type: closed loop (incl. sieves, honeycomb-straightener and turning vanes)
• closed testsection
• fan mounted with vibration dampers
• fan mechanically decoupled with canvas flanges
• manholes in all relevant segments for optimal accessibility
• frame oft he windtunnel can be fastened to the floor
• material: galvanized steel (colors on request)
• NOTE: matching power electronics here
• NOTE: matching control here
• NOTE: due to further develompent changes are reserved
